X PRO
|
Type |
X Pro |
|
Input Voltage |
110V/220V |
|
Cutting Mode |
Flame and Plasma |
|
Cutting Torch No. |
1 group Flame and Plasma both standard, can be multi torches |
|
Driving Mode |
750W x 2, 400w x 1, AC Panasonic servo system(optional), Dual driving mode |
|
Height Control |
Auto height controller for Flame and plasma torch |
|
Flame Cutting Thickness |
6~300mm |
|
Plasma Cutting Thickness |
Due to the plasma power source |
|
Flame Cutting Speed |
0-1,000mm/min |
|
Plasma Cutting Speed |
0-9.000mm/min |
|
Display |
LCD 10"Touch Screen |
|
Nesting software |
Libellula |
|
Options |
Capacitance Auto Torch Height Control(THC)and anti-collision |
|
Cutting Gas |
Flame: (Acetylene, Propane or Liquid Gas)+ Oxygen |
|
Tolerance |
<0.2mm |

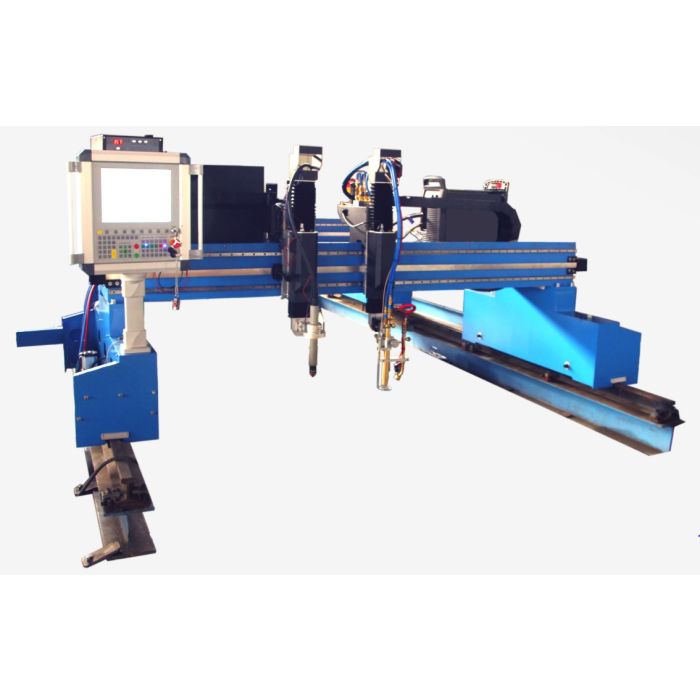

X-PRO CNC GANTRY PLASMA/FLAME CUTTING MACHINE
Overview
X Pro is a heavy-duty CNC Gantry cutting machine, dual drive. It can greatly help customers improve productivity, support the plasma and flame, Japanese Panasonic servo motor system, high precision, easy operation, absolutely durable. It can import DXF files directly and provides the full range of cutting thicknesses of metal.
Standard Features
Standard Features for common:
- Effective cutting area: 3000*6000mm, can be extended
- Both plasma and flame mode (with Auto-ignition), two moving unit
- Fangling system F2300A
- HYD XPTHC-300-3
- Libellula wizard 3 software
- Panasonic servo motor, dual drive, 450w*3
- Double cylinder guiding rail
Standard Features for pro:
- Effective cutting area: 3000*6000mm, can be extended
- Both plasma and flame mode (with Auto-ignition), two moving unit
- HYD IPC
- HYD XPTHC-300-3
- Libellula wizard Pro software
- Panasonic servo motor, dual drive, 750w*2+400w*1
- Square guiding rail
Strong frame
The square rail is used horizontally and the 24kg rail is used in the longitudinal direction, which is high precision and durable.
The strong beam can carry the plasma power source.
Large-span trolley design
The large-span trolley design effectively balances the torque of the equipment.
Reduce the error caused by inertia.
Switch cutting mode immediately
When using multiple lifting bodies, connect them with stainless steel belts to adjust the distance between the two lifting bodies and make the cutting mode change quickly.
